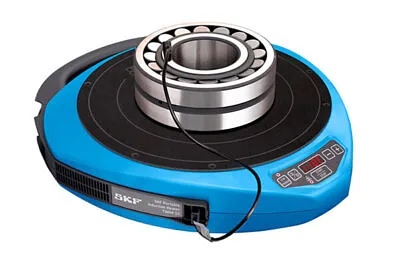

TWIM 15/230V Induction Heater

Advantages of the TWIM 15:

• Innovative bearing heating
• Portable, compact and lightweight
• No support yokes required
• Automatic temperature monitoring
• Detects the bearing size and adapts the heating accordingly
• Two power levels and three power settings
• User-friendly LED control panel
• Quiet operation

Technical data:

• Max. bearing weight: 20 kg
• Min. bearing bore diameter: 20 mm
• Max. bearing outer diameter: 320 mm
• Max. bearing width: 85 mm
• Voltage: 230V, 50Hz
• Max. current consumption: 10A
• Temperature control: 20 … 200°C
• Dimensions: 450 x 500 x 100 mm
• Total weight: 6,6 kg
