Toolkit

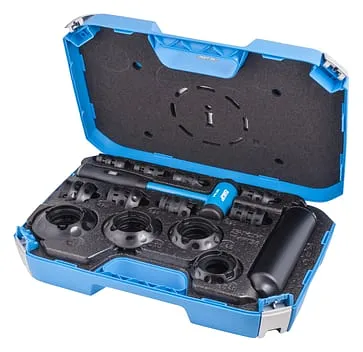

Approximately 16 % of all premature bearing failures are caused by incorrect mounting. The SKF TMFT 36 kit with impact rings is designed for quick and accurate mounting of bearings while reducing the risk of bearing failures occurring. The correct combination of impact ring and sleeve provides efficient transmission of the mounting force to the bearing ring with the interference fit, which minimises the risk of damage to the bearing raceways and rolling elements. The kit contains 36 impact rings, 3 impact sleeves and a dead-blow mallet. TMFT 36 can also be used for mounting bushings, seals and pulleys.

• 36 impact rings in different sizes cover more than 400 different bearings
• Facilitates correct mounting on the shaft, in the housing and in blind holes
• The diameter of the impact ring matches the inner and outer diameter of the bearing perfectly
• The specially shaped end of the impact sleeve distributes the impact force evenly
• Impact rings and sleeves are made of highly impact-resistant material for a long service life
• Snap-fit connection between impact ring and sleeve provides good stability and durability
• The impact rings can be used in a press
• The impact rings are clearly marked so that the ring size can easily be identified and the ring selected
• The impact sleeve has a flat, easy-grip surface
• The nylon-faced mallet prevents damage to the components
• The rubber handle of the mallet provides an excellent grip
